Product Details
+

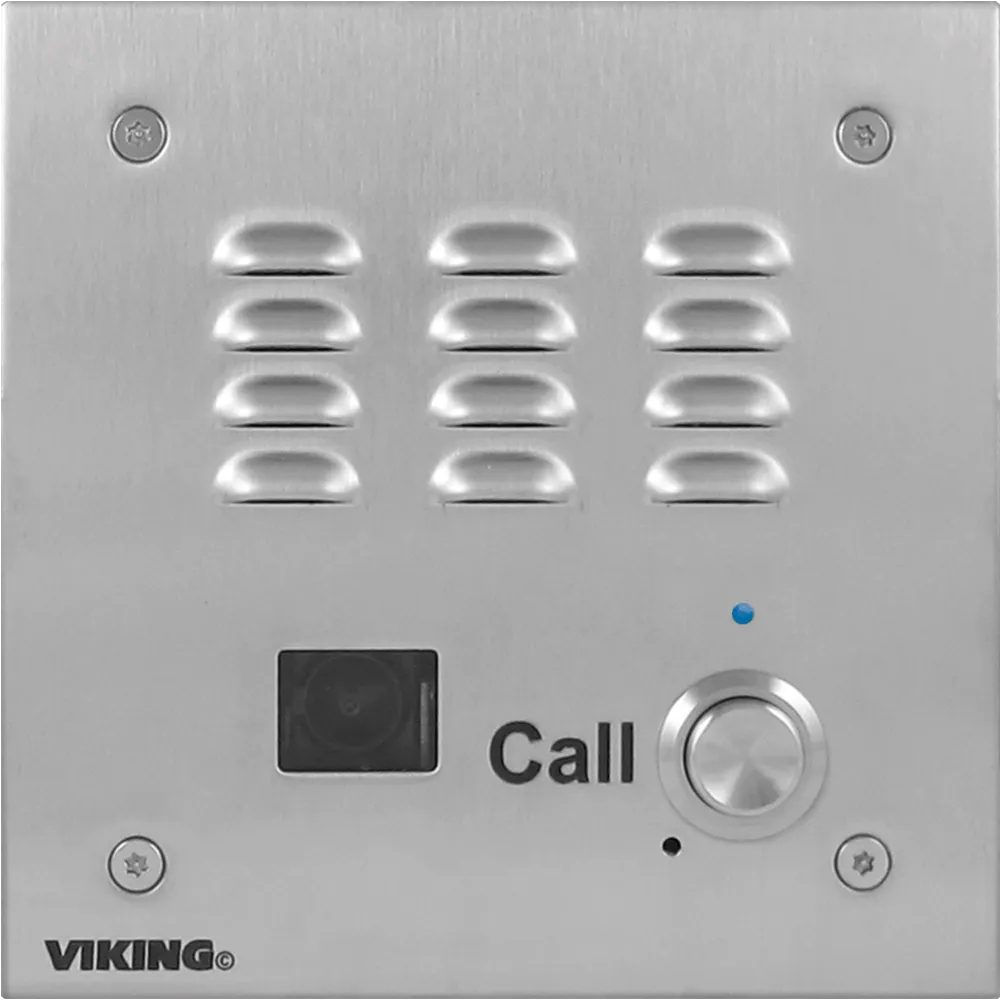

Viking E-35-IP Door Entry Phone Features:
- Built-In high resolution analog NTSC color video camera with wide viewing angle, tilt/swivel adjustments and wide operating temperature
- Self diagnostic reports via email (testing com, mic, speaker & switch)
- Automatic polling and programming software included
- 2 Amp relay contacts for door/gate or SL-2 strobe light control
- Blue “Call” LED indicator
- SIP compatible
- PoE powered (class 1,
- Automatic Noise Canceling (ANC) feature for proper operation in noisy environments
- VoIP eliminates the need for “Push to Talk” mode
- Network downloadable firmware
- Handsfree operation
- Marine grade 316 stainless steel prevents corrosion
- Programmable to dial up to 5 numbers on busy or ring no answer and provide color analog CCTV video of who is at your door or gate
- Cycles through backup phone numbers on busy or no-answer
- Optional Enhanced Weather Protection (EWP), EWP products are designed to meet IP66 Ingress Protection Rating
- Hangs up on busy signal, time-out or touch tone command
- Remotely programmable
- Extended temperature range (-30°F to 130°F)
- Replacement board available
- Volume adjustments for microphone and speaker
- E-35-IP is flush mountable using the included rough-in box or can be surface mounted using an optional Surface Mount Box
- Optional Polling System available
- Optional or strobe light kit available
Specifications:
- Power: PoE class 1 (
- Dimensions: See Installation and Specifications
- Operating Temperature: -26° C to 54° C (-15°F to 130°F)
- Humidity - Standard Products: 5% to 95% non-condensing
- Humidity - EWP Products: Up to 100%
- Audio Codecs: G711u, G711a, G722
- Connections: (1) RJ45 10/100 Base-T, (3) gel-filled butt connectors
Compatibility List:
- 3COM VCX
- 3CX
- Aastra
- Asterisk
- Atcom
- Avaya IP Office
- BlueBox
- Brekeke
- Cisco Unified Communications Manager (CUCM)
- Freeswitch
- Grandstream
- iptel.org
- Kamailio
- MetaSwitch
- OfficeSIP
- OpenSIPS
- Panasonic
- Samsung Communications Manager (SCM)
- ShoreTel
- Siemens Communications Server (SCS)
- SIP Express Router (SER)
- sip.antisip.com
- Snom PBX
- Sonus
- Switchvox
- Teksip
- Toshiba
- VoIP.ms
- Vonage
