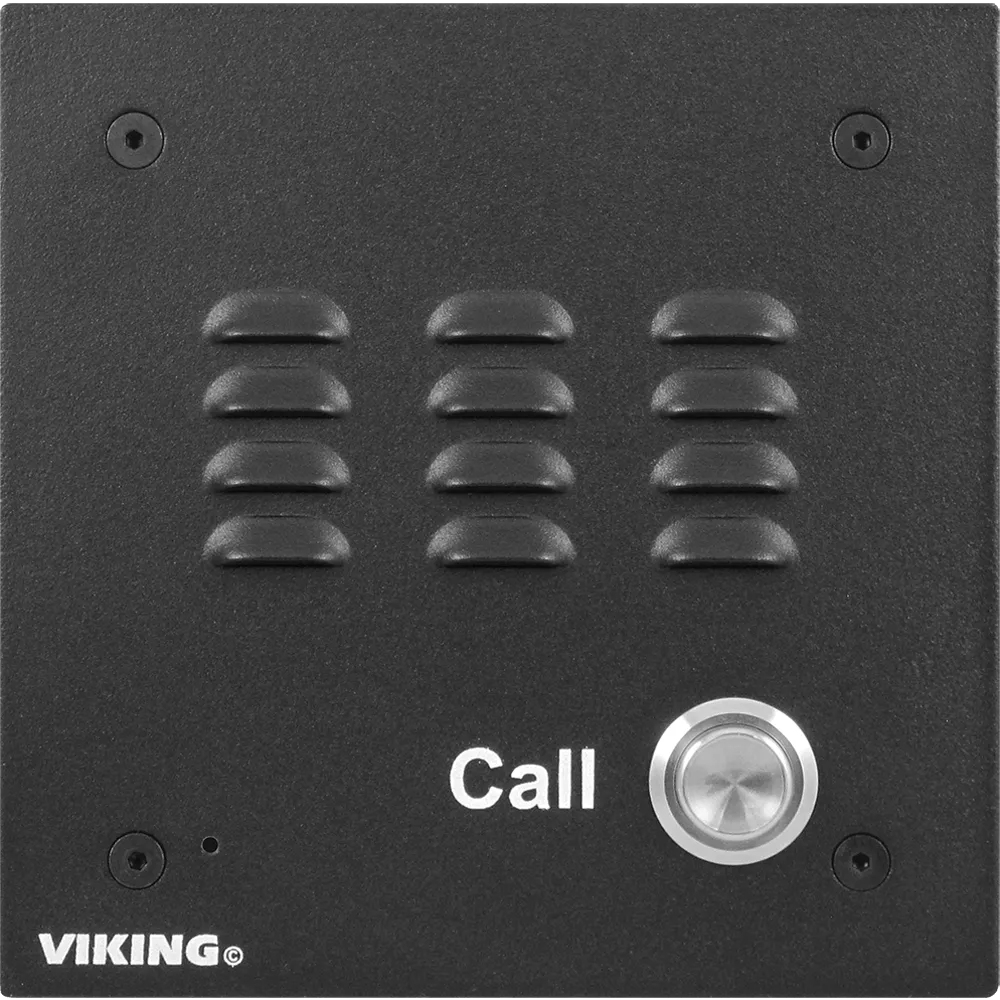

E-10-IP-EWP Features:

• Commercial, industrial and residential door security
• Vandal Resistant
• Flush Mount
• SIP compatible (see pg 2 for list of compatible IP-PBX phone systems)
• PoE powered (class 1,
• Automatic Noise Canceling (ANC) feature for proper operation in noisy environments
• Network downloadable firmware
• Handsfree operation
• Extended temperature range (-15°F to 130°F)
• Volume adjustments for microphone and speaker
• Flush mountable using the included rough-in box or can be surface mounted using an optional Surface Mount Box
• Optional Open Source PC Based Telecom Controller
• Optional Blue Strobe Light Kit

• Viking E-10-IP-EWP Applications:

  • Gate Entrance
  • Parking ramps / lots
  • ATM machines
  • Medical centers
  • Lobbies
  • Entryways
  • Stadiums
  • Convention centers
  • Public access areas

Viking E-10-IP-EWP Specifications:

• Power: PoE class 1 (<4 Watts)
• Dimensions: See Installation and Specifications
• Operating Temperature: -26° C to 54° C (-15°F to 130°F)
• Humidity - Standard Products: 5% to 95% non-condensing
• Humidity - EWP Products: Up to 100%
• Audio Codecs: G711u, G711a, G722
• Connections: (1) RJ45 10/100 Base-T, (3) gel-filled butt connectors

VoIP SIP System Compatibility List:

• On Premise
• 3COM VCX
• 3CX
• Allworx
• Aastra
• Asterisk
• Atcom
• Avaya Aura Platform
• Avaya IP Office Platform
• BlueBox
• Brekeke
• Cisco Unified Communications Manager (CUCM)*
• Cisco Unified Communications Manager Express (CUCME)
• Elastix
• epygi QX200
• Freeswitch
• Grandstream*
• Interactive Intelligence
• iPECS (Ericsson-LG)
• Iwatsu ECS
• Kamailio
• Mitel 3300
• NEC
• OfficeSIP
• OpenSIPS
• Panasonic** (with SIP Extension Card)
• PolyCom
• Samsung Communications Manager (SCM)
• ShoreTel
• Siemens Communications Server (SCS)
• SIP Express Router (SER)
• Snom PBX
• Sonus
• Switchvox
• Teksip
• Toshiba
• Vertical Wave*
• Yealink T Series S IP Phones

Cloud Based Service Provider:

• Callcentric
• iptel.org
• MetaSwitch
• Ring Central
• sip.antisip.com
• Switchvox
• unify
• Vertical Wave
• Voice Carrier
• VoIP.MS
• Wildix
• ** Note: Relay operation commands are NOT compatible with Panasonic Phone Systems (Panasonic does not transmit DTMF between station ports)
