Specifications

-Audio Supported: Yes

-Host Connector :2 - USB-C® Male

-Network Interface

-RJ45 (Gigabit Ethernet)

-Ports

1 - M.2 NVMe®/SATA slot (2230,2242,2260,2280)

1 - USB-C® 3.2 Gen 2

1 - USB-C® Power Delivery 3.0

2 - USB™ Type-A 3.2 Gen 2

1 - USB™ Type-A 3.2 Gen 1

1 - 4K HDMI™

1 - 4K DisplayPort™

1 - SD™ & microSD™ 3.0 memory card reader/writer

1 - RJ45 Gigabit Ethernet

1 - Security Lock Slot

-Power SourceBus-powered

-Video Output

1 - HDMI™ Female

1 - DisplayPort™ Female

-PerformanceAudio Channel 2.1 via HDMI™/DisplayPort™

-Compatible Networks :10/100/1000 Mbps

-Displays Supported: 2

-Max Data Transfer Rate:10 Gbps

-M.2 slot - Write: 900 MB/s, Read: 925 MB/s

-Max Display Refresh Rate : 60 Hz

-Max Display Resolution 3840 x 2160

-PowerInput Current 5A

-Input Voltage 20V

-Output Current 5A

-Output Voltage 20V

-Power Consumption: ≤ 600 mA

-Power Delivery Up to 100W via USB-C®

-Physical SpecificationsCable Length :0.6 in. (15 cm)

-Color :Grey & Black

-Enclosure Type : Aluminum

-Operating Humidity: < 85% non-condensing

⚠️ IMPORTANT NOTE ⚠️

2 Year Warranty

What's In The Box

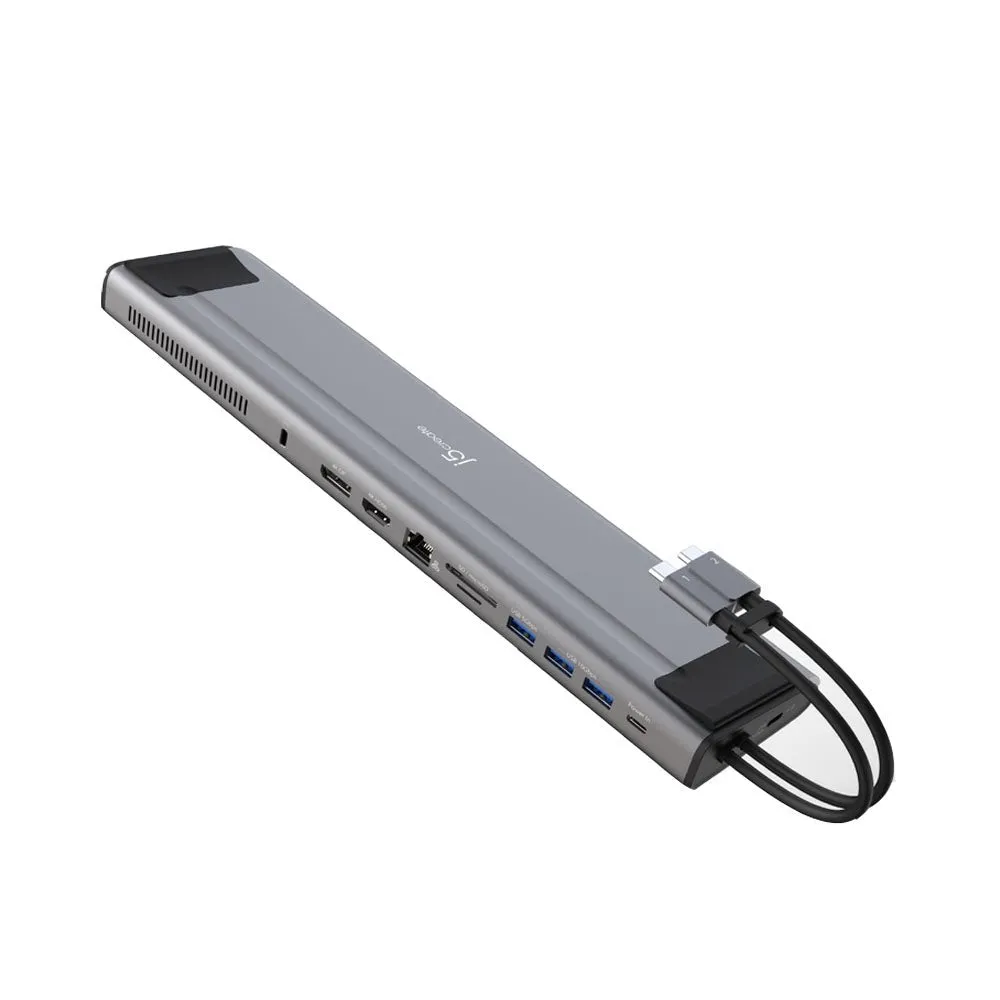

1x J5create JCD552
