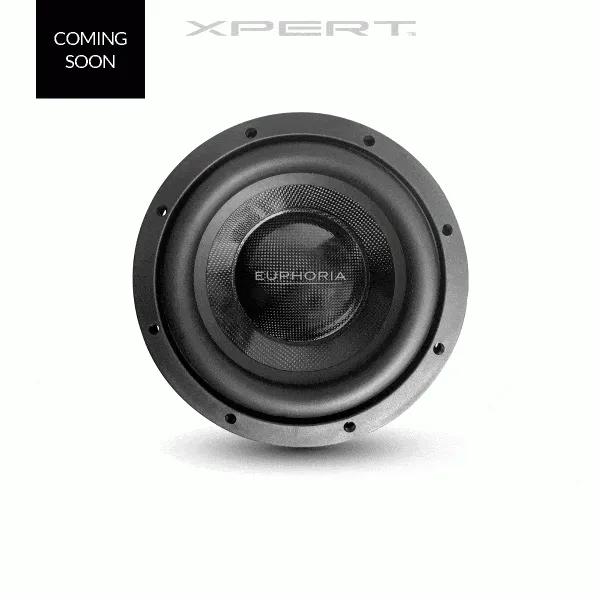

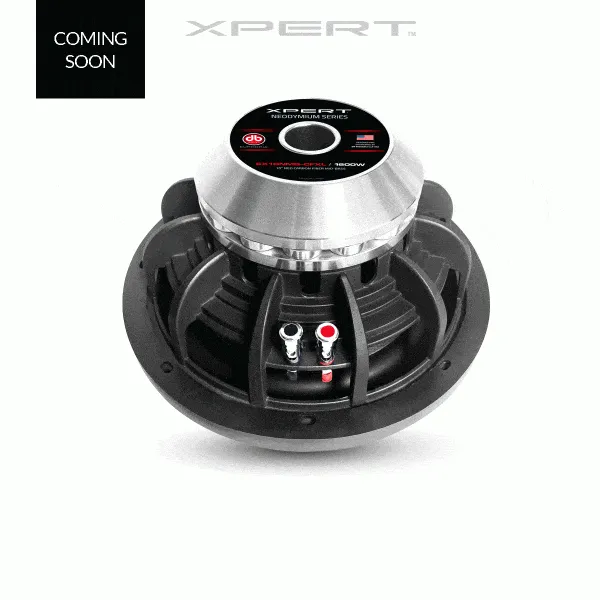

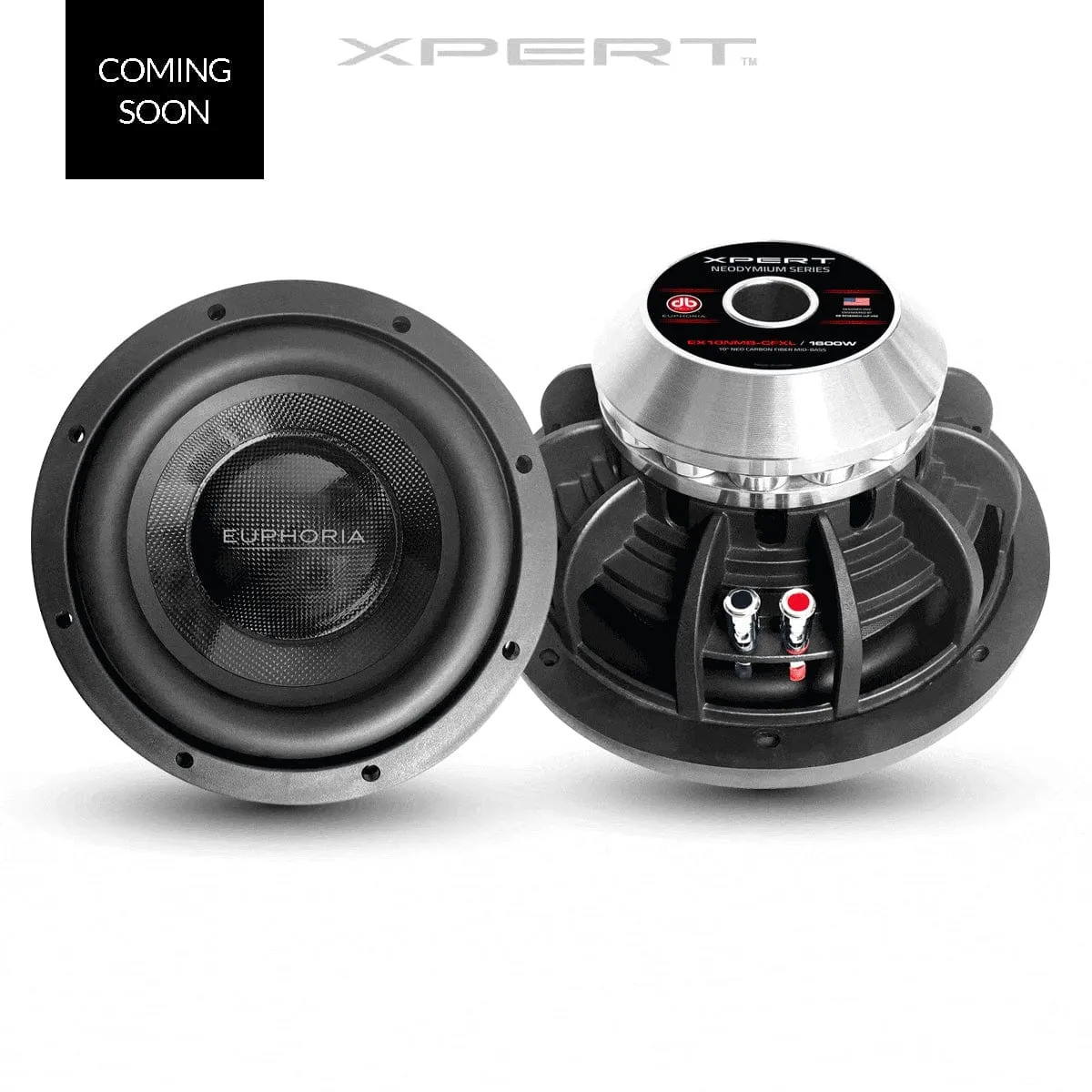

DB Drive Xpert EX10NMB-CFXL

Features

• Power AES Handling: 800 Watts
• Dynamic Wattage: 1600 Watts
• FS 41Hz
• Sensitivity (1w/1m): 92dB
• Impedance: 3Ω
• 3" Midrange Voice Coil
• IP52 Rated Paper Cone with Treated Rubber Surround
• Die-Cast Aluminum Basket with Radial Venting Dimension

This new design will require a larger installation ring than most rings on the market today or you will need to modify your existing rings

Made to be used with

Dimensions

• Mounting Depth: 4.68” / 108.5mm
• Cutout Diameter: 9.26” / 230mm
