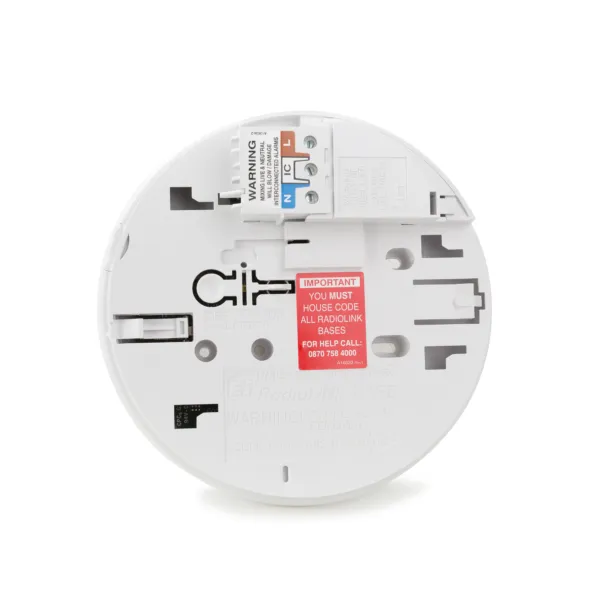

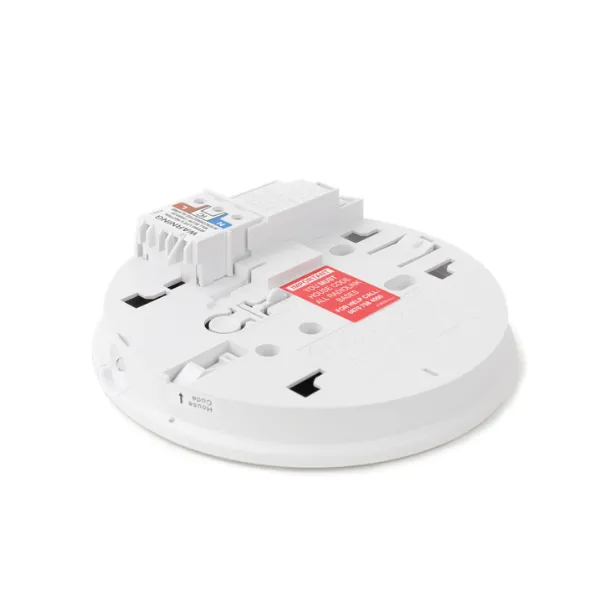

The Ei168RC RadioLINK Base is an easi-fit mounting plate with built-in RadioLINK. It provides wireless interconnect between alarms, i.e. when one alarm is triggered, all alarms in the system sound. It is mains powered unit with a rechargeable lithium cell back-up, to be used instead of the easi-fit base to enable the alarms to have RadioLINK capabilities. The Ei168RC RadioLINK base is compatible with the 140RC Series alarms – Ei146RC, Ei144RC & Ei141RC.
The 160e Series and Multi-Sensor Fire Alarm use a RadioLINK Module, Ei100MRF, directly into the head of the alarm to gain RadioLINK capabilities instead of a base.
Once all the alarms have been installed the RadioLINK system is secured by a special House Coding function to safeguard the system from interference from other RF systems.
The Ei168RC allows for easy expansion of an existing hard-wired interconnected system. A mixed wired and wireless system is often referred to as a hybrid system. To set a hybrid system up – Simply fit one Ei168RC base to an alarm in the existing alarms and any new alarms with Ei168RC bases. Once installation is complete House Code the alarms together into a system. If any alarm, hard-wired or wireless, is now triggered it will sound all the alarms in the system.
Technical Information
Battery Back-up: Rechargeable lithium.
RF Frequency: 868, 499Mhz RadioLINK protocol.
RF Power: 5dBm.
RF Protocol: Proprietary RadioLINK using multi-path, multi-repeater mesh architecture.
RF Range: 30 metres
System Size: 12 RadioLINK devices max.
Operating Temperature: 0 to 40°C. Storage – 0 to 35°C (in a dry area).
Humidity Range: 15% to 95% relative humidity.
Indicators: Blue LED for RF and fault signals.
Dimensions – Product: 150mm dia. x 37mm (20mm installed).

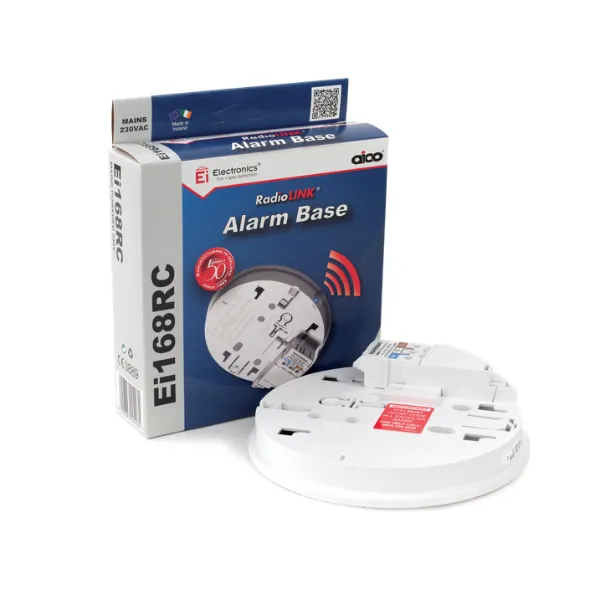

Dimensions – Boxed: 153mm x 153mm x 40mm.
Weight: 235g (boxed).
Guarantee: 5 years.

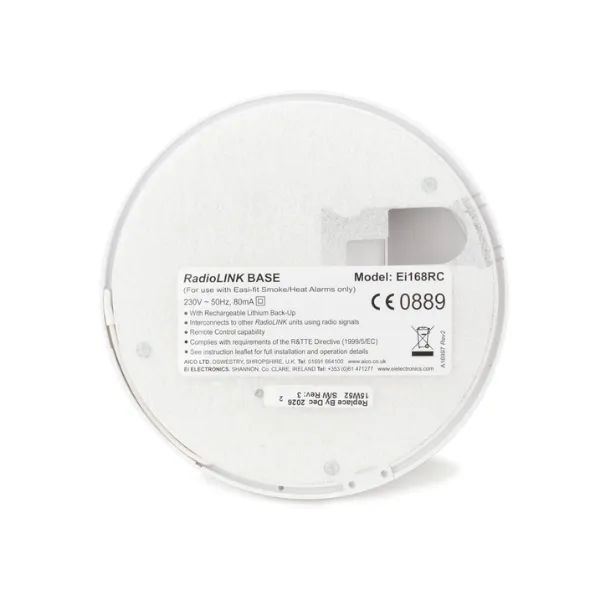

Approvals: CE certified / EN300220-3 (RF) / 301498-3 (EMC).
